Underlay

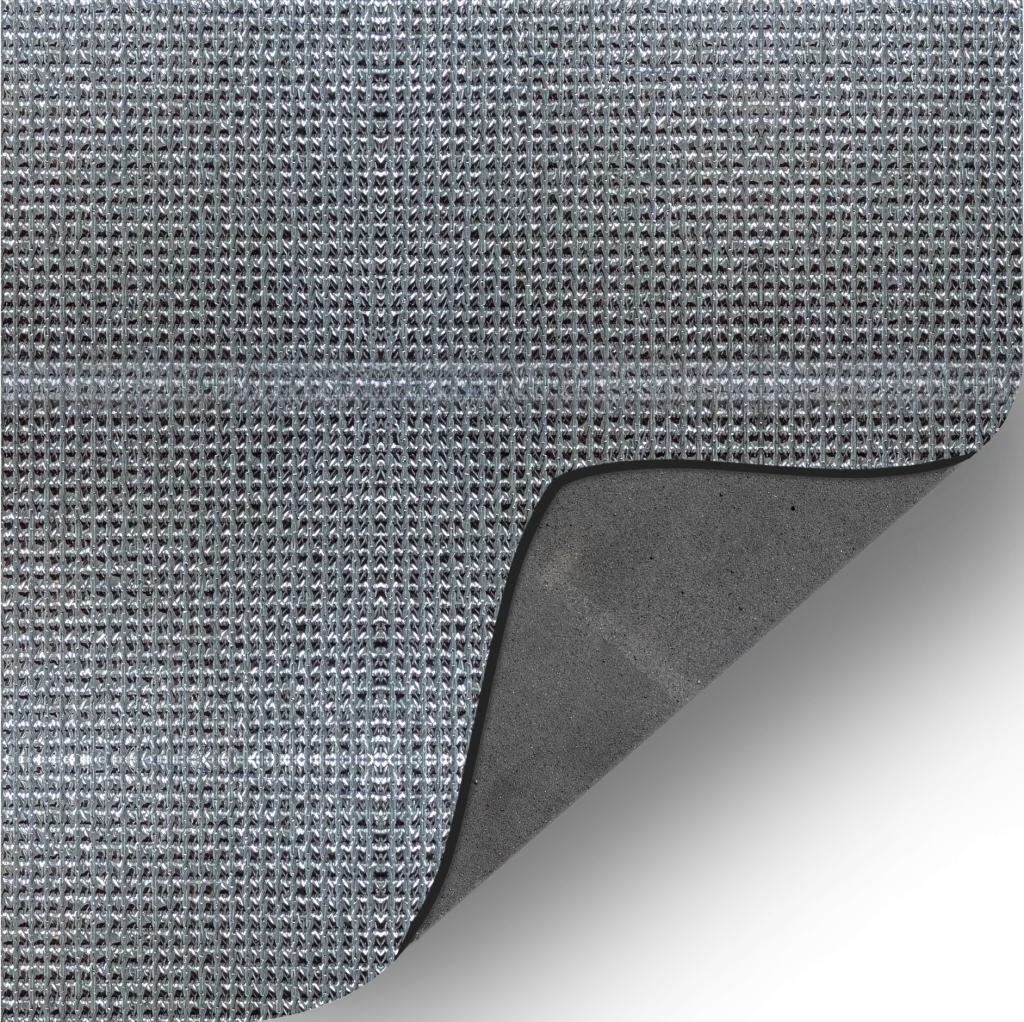

NOISE GUARD
Laminate wood underlayment
INSTALLATION INSTRUCTIONS:
- The sub-floor must be level, dry and clean.
- From the room corner start to roll-out the underlay, vapour barrier side downwards; allowing the pad to run up the exterior walls 1/2″.
- Roll out the second row of underlay along-side the first.
- Be sure the edges of rows are aligned together as tightly as possible without over-lapping.
- Repeat steps until installation is complete.
The Black Muffler Experience
- Moisture Control
Waterproof closed Cell Construction
- Sound Control
Dramatically reduced foot traffic control
- Insulation
Suitable for over concrete and wood sub-floors
- Safe for Homes
Mold and mildew resistant as non-allergenic
- Compatible
Suitable for use over concrete & wood sub-floors
- Tackle Imperfections
Overcomes most sub-floors imperfections
- Warranted
For all floating floor applications
- Installation
Self sealing overlap system for ease of installation
| Feature | Value |
|---|---|
|
Impact Insulation Class (IIC) |
72 db |
|
Sound Transmission Class (STC) |
73 db |
|
Water Resistance |
Waterproof Closed Cell Membrane. |
|
Thickness |
3mm |
|
Roll Width |
3.6Ft (1.1M) |
|
SQ FT Per Roll |
200 Sq.Ft |
|
Recommended Use
|
For engineered and Laminate Floors.
Above and below grade. Best use for all sub-floors. Radiant heated floors. |

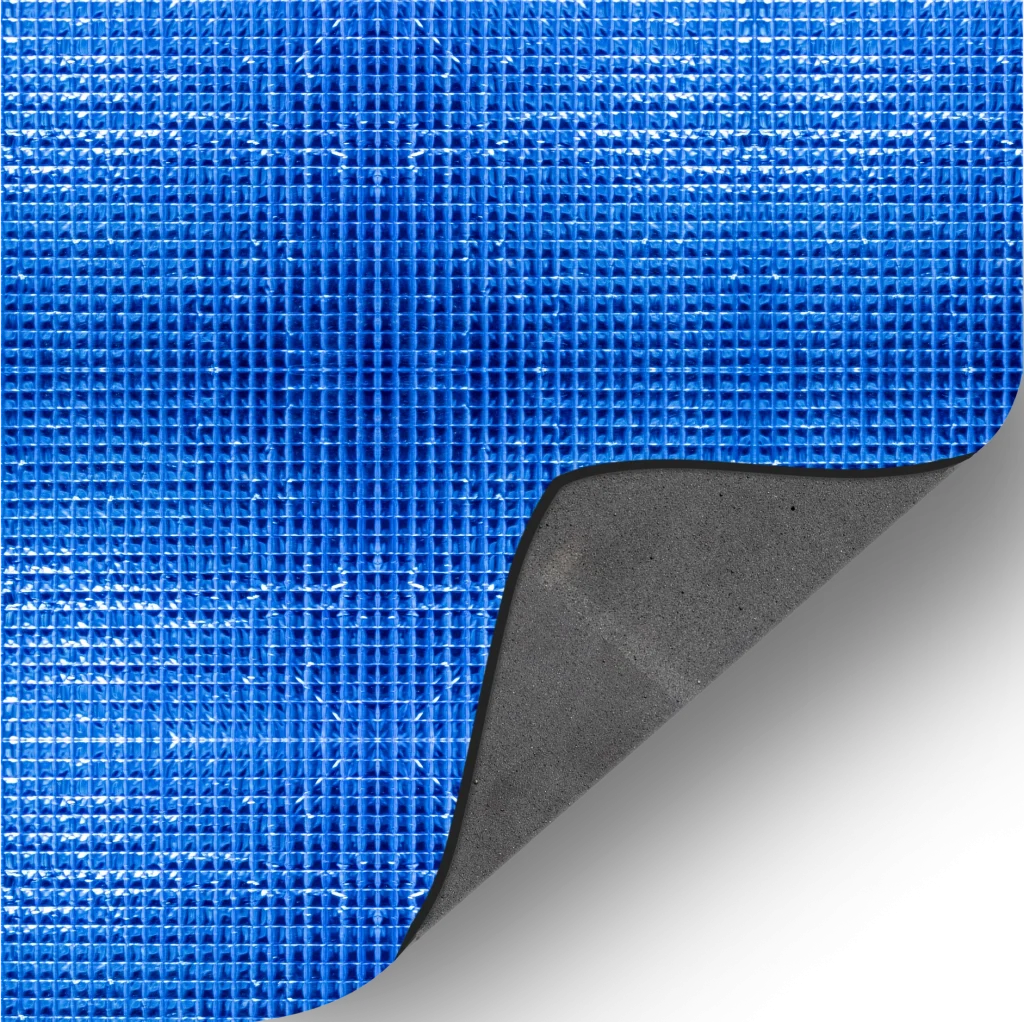

NOISE BLOCKER BLUE
Sound & Moisture Control
INSTALLATION INSTRUCTIONS:
- The sub-floor must be level, dry and clean.
- From the room corner start to roll-out the underlay, vapour barrier side downwards; allowing the pad to run up the exterior walls 1/2″.
- Roll out the second row of underlay along-side the first.
- Be sure the edges of rows are aligned together as tightly as possible without over-lapping.
- Repeat steps until installation is complete.
No Other Laminate Pad Offers More
- High Quality
Waterproof closed Cell Construction
- Easy Installation
Self sealing overlap system for easy installation
- Noise Blocking
Dramatically reduces foot
traffic noise
- Safe for Homes
Antibacterial, mold and
mildew resistant
| Feature | Value |
|---|---|
|
Impact Insulation Class (IIC) |
74 db |
|
Sound Transmission Class (STC) |
75 db |
|
Water Resistance |
Waterproof Closed Cell Membrane. |
|
Thickness |
3mm |
|
Roll Width |
3.6Ft (1.1M) |
|
SQ FT Per Roll |
200 Sq.Ft |
|
Recommended Use
|
Suitable for use over concrete and wood sub-floors |

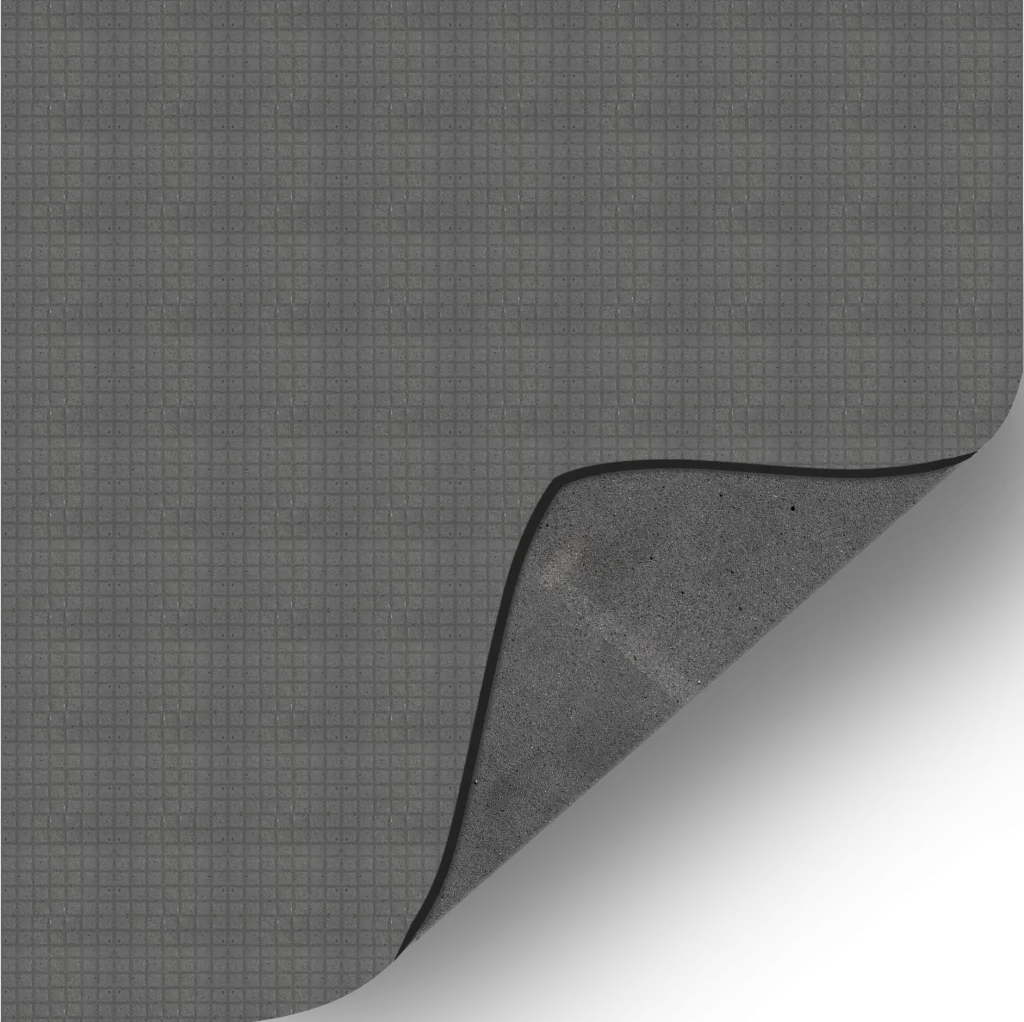

NOISE GUARD 4.5mm
High-Density Crosslink EVA Foam
For best sound absorption and impact insulation, reduces minor sub-floor imperfections.
Superior Compression Strength
provides stability and durability for high traffic areas.
Moisture Barrier Attached
eliminates bacteria, mold & mildews causing structural damage to flooring.
Self-Seal Tape System
for easy installation.
Application
laminate & engineered hardwood flooring on all subfloors.
Superior Compression Strength
provides stability and durability for high traffic areas.
Moisture Barrier Attached
eliminates bacteria, mold & mildews causing structural damage to flooring.
Self-Seal Tape System
for easy installation.
Application
laminate & engineered hardwood flooring on all subfloors.
- Material
High-density EVA foam
- Insulation
Designed for floating installation of laminate & engineered hardwood flooring.
- Sound Control
Better impact insulation & noise absorption solution
- Antibacterial
Moisture proof with antimicrobial coating
- Compatible
Subfloor heating compatible
- Certified
CDPH V1.2-2017, LEED V4.1 Certified Products
| Feature | Value |
|---|---|
|
Thickness |
4.5mm |
|
Sound Transmission Class (STC) |
80 db |
|
Impact Insulation Class (IIC) |
82 db |
|
FIIC 60 |
AIIC32 |
|
Moisture Barrier Attached |
|
|
Compression Strength |
7.3 PSI |
|
Density
|
9.36 LBS per CU.FT |

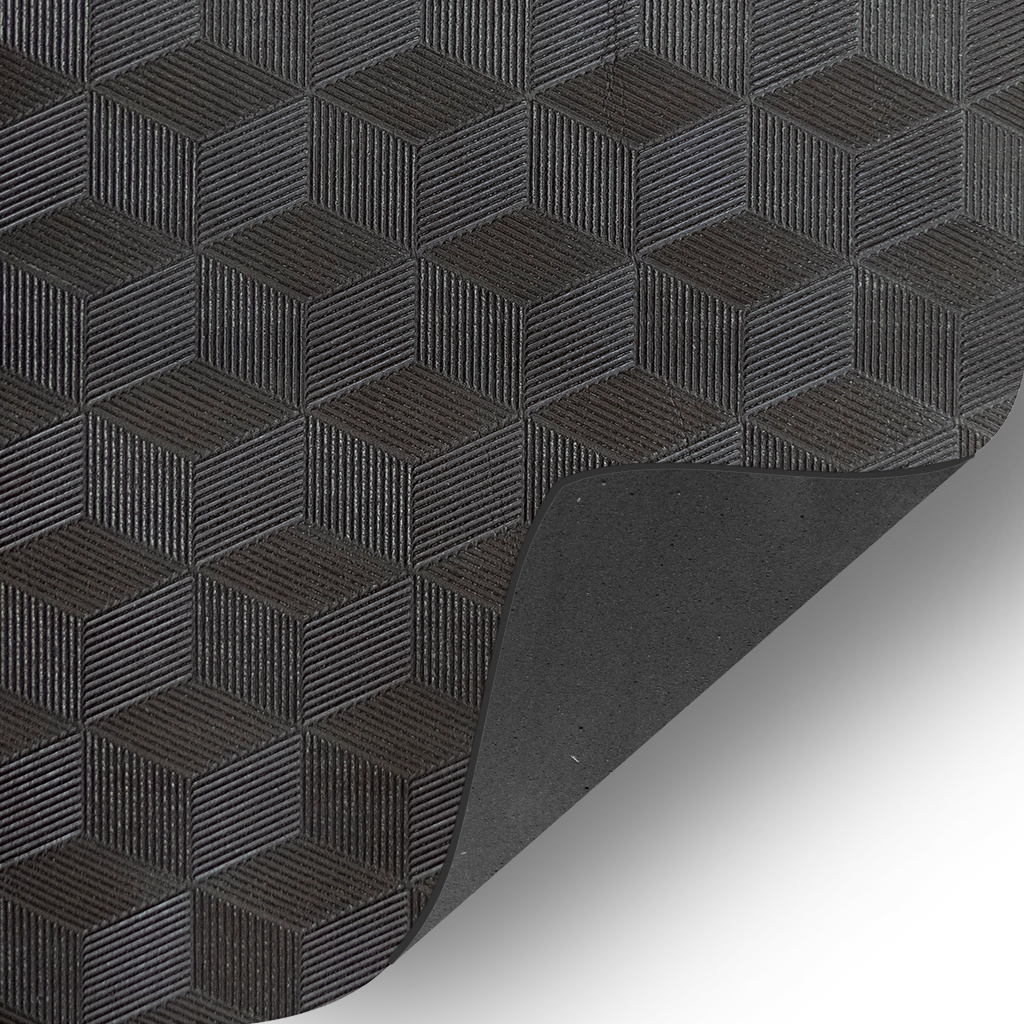

SILENT STEP VINYL
For Use Under Luxury Vinyl Tile
INSTALLATION INSTRUCTIONS:
- Prepare the subfloor for the flooring installation, ensure it is dry and flat.
- Unroll and place Moccasin underlayment with black textured side down, this acts as the moisture barrier.
- Trim and cut to follow the perimeter of the room to create a smooth continuous membrane.
- You are ready ton install your vinyl floor.
- Acoustic Barrier
Stong acoustic barrier for noise control
- Durable
Mildew and mold resistant
- Safe for homes
100% recyclable, Non-toxic, allergenic
- Vapour Protection
100% recyclable, Non-toxic, allergenic
Premium Sound Ratings STC 66/IIC68
| ITEM | UNIT | LVT PAD | |
|---|---|---|---|
|
Apparent Density |
kg/m3 |
180 |
|
|
Thickness |
mm |
1.50 |
|
|
Thickness Deviation |
mm |
0.1 |
|
|
Tensile Strength |
kPa |
D |
1000(10Kg f/cm3) |
|
TD |
700(7Kg f/cm3) |
||
|
Elongation |
% |
MD |
280 |
|
TD |
175 |
||
|
Tear Strength |
n/m |
MD |
6.9 x 103(7.0kg f/cm) |
|
TD |
4.9 x 103(5.0kg f/cm) |
||
|
Cell Structure |
|
CLOSED |
|
|
Average Diameter of Cell |
mm |
0.2 |
|
|
Elasticity |
% |
15 |
|
|
Sound Absorption Coefficient |
db |
55 |
|
|
Water Absorption |
kg/m2 |
2.5 |
|
|
STC |
db |
72 |
|
|
IIC |
db |
73 |
|

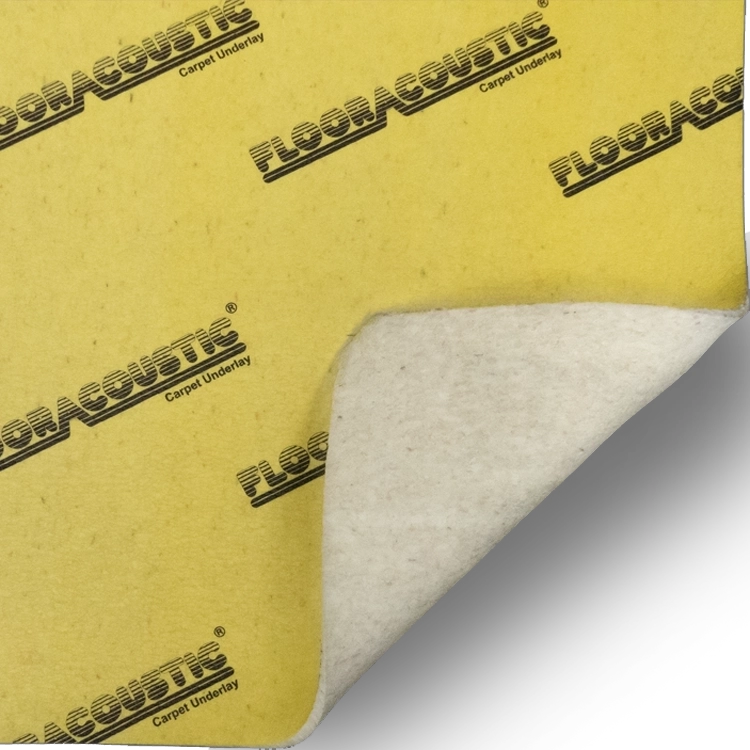

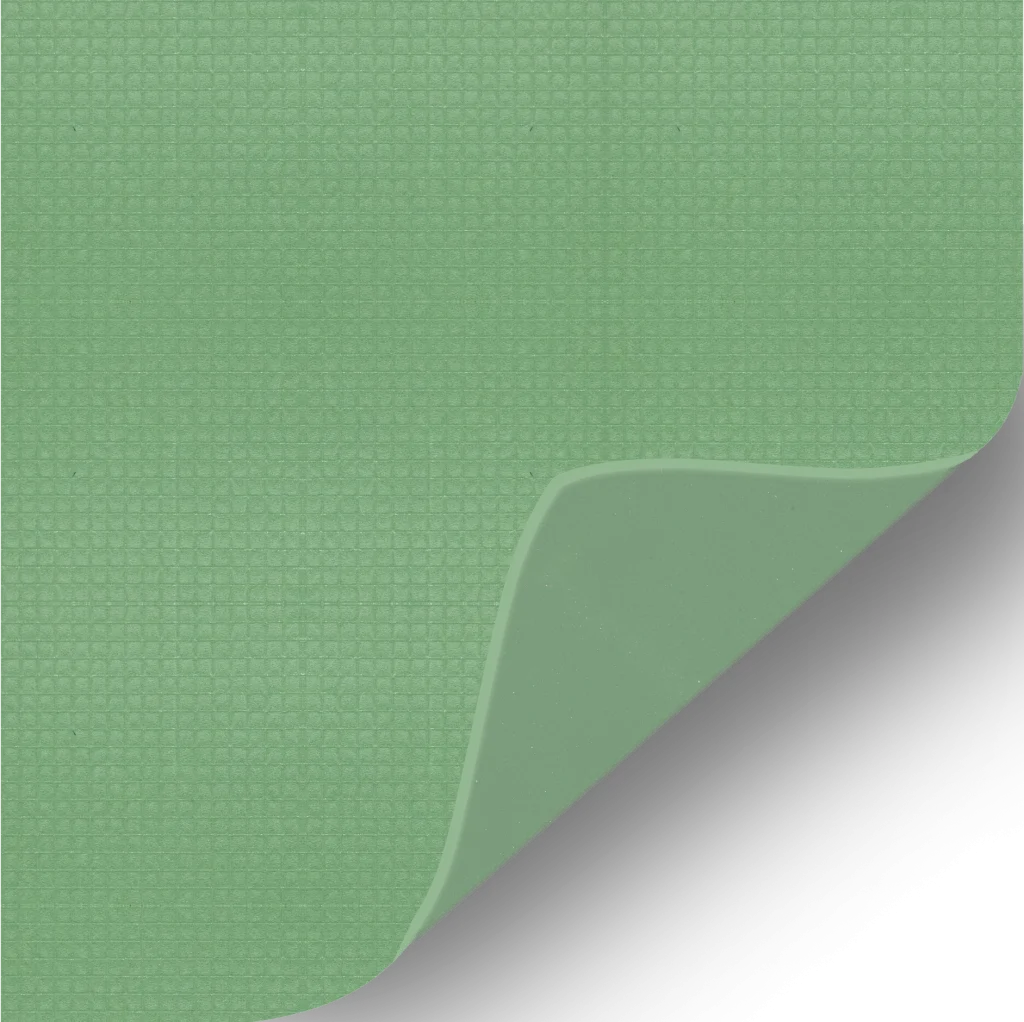

Floor Acoustic
Sound proof underlayment with moisture barrier
INSTALLATION INSTRUCTIONS:
- The sub-floor must be level, dry and clean.
- From the room corner start to roll-out the underlay, vapour barrier side downwards; allowing the pad to run up the exterior walls 1/2″.
- Roll out the second row of underlay along-side the first.
- Be sure the edges of rows are aligned together as tightly as possible without over-lapping.
- Repeat steps until installation is complete.
- Home Ready
Antibacterial, mold and mildew resistant
- Acoustic Properties
Closed-cell technology: best for sound absorption
- Load Efficient
Provides super stability, performance and durability
- Energy Saving
Excellent thermal R value and reduces passive thermal loss
The professional choice for commercial & residential flooring projects
| Feature | Value |
|---|---|
|
Building Code |
Built in 6 mil moisture vapour barrier plus water resistant foam. It’s ideal for Canada’s building codes & flooring manufacturing installation guidelines. |
|
Environmentally Friendly
|
Antibacterial, mold and mildew resistant.
Excellent acoustic insulation. |
|
Coverage |
200 Square Feet per Roll (43″ x 56′) |
|
Thickness |
3.2mm |
|
Impact Insulation Class (IIC) |
74 degrees. |
|
Sound Transmission Class (STC) |
73 degrees
IIC up to 25 |
|
Load |
Provides super stability, performance and durability, particularly in concentrated high foot traffic areas. |
|
Recommended Use
|
For engineered and Laminate Floors. Above and below grade. Best use for all sub-floors. Radiant heated floors. |
|
Lifetime limited Warranty |
|
|
The professional choice for commercial and residential flooring projects. Includes 6 mil Moisture Vapour Barrier. |
|

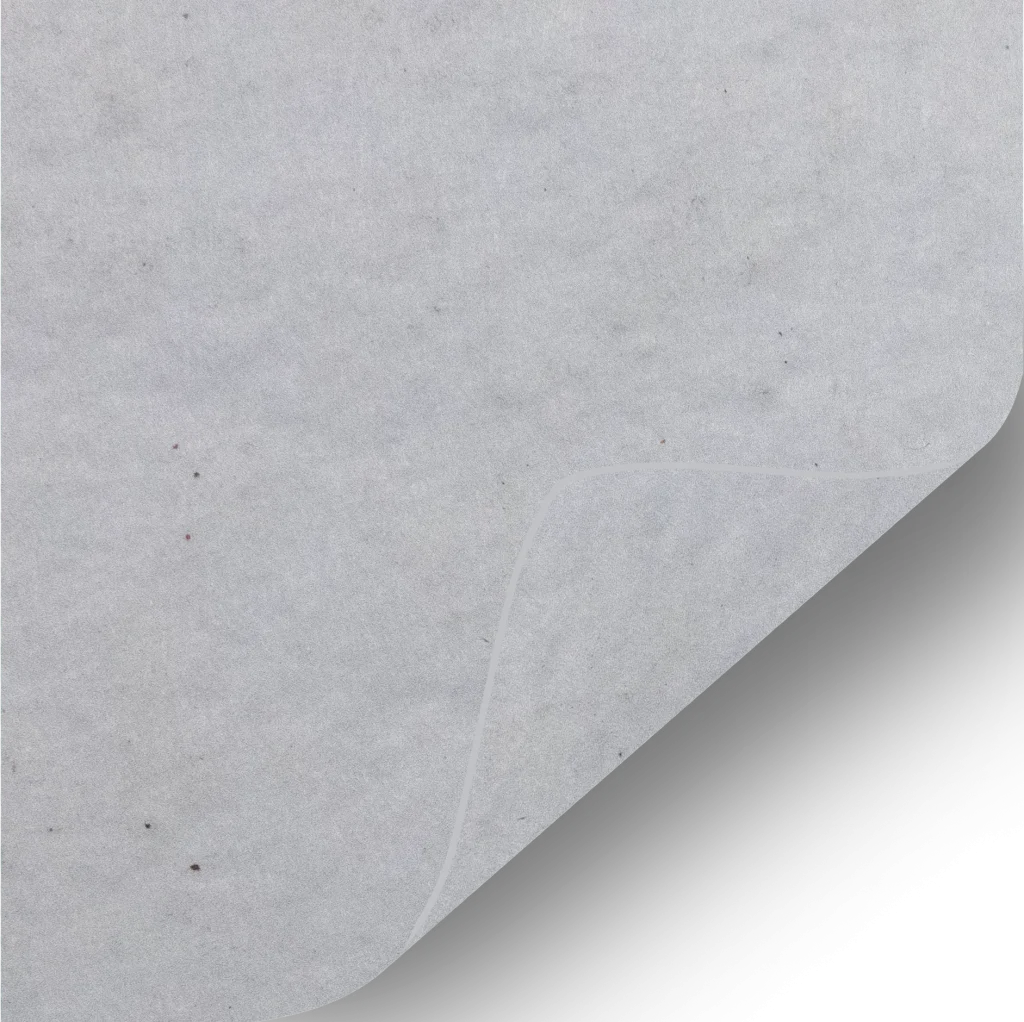

Floor Protection
Anti slip moisture barrier

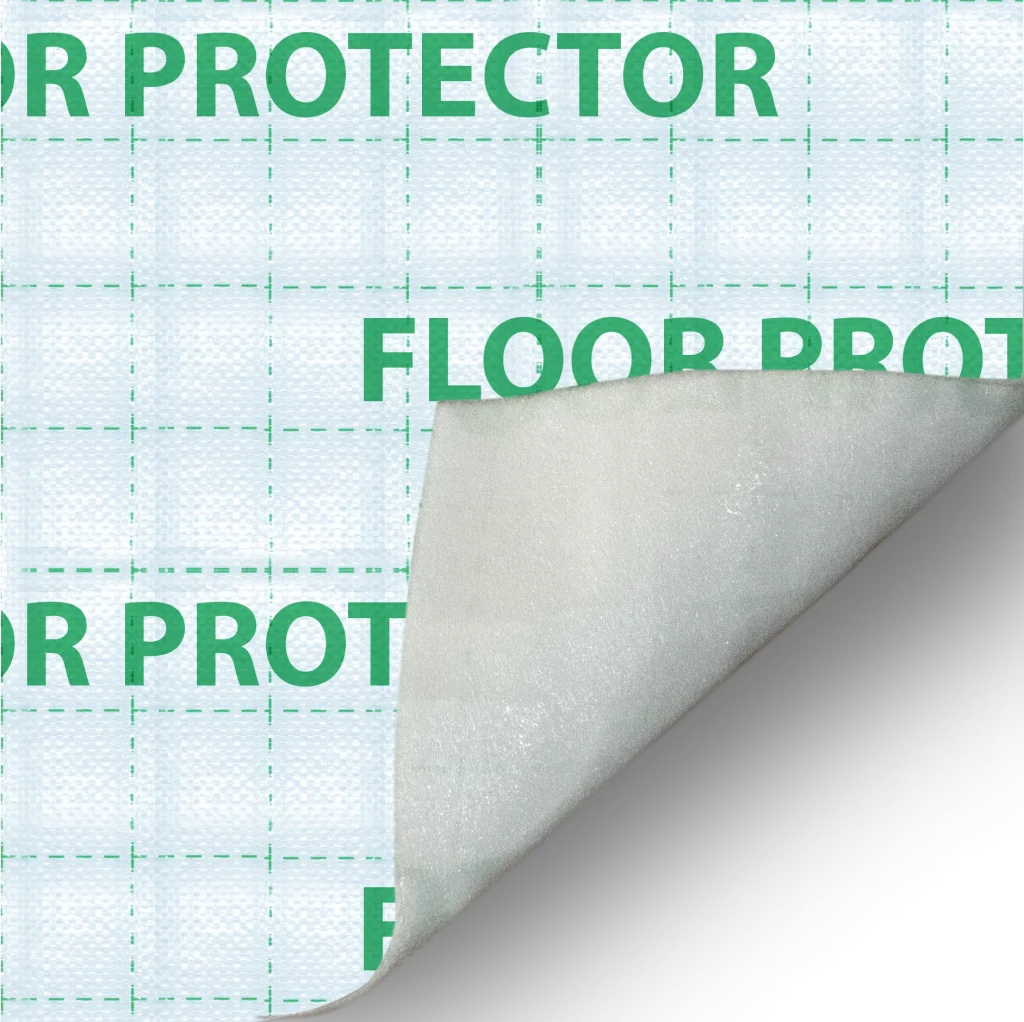

Overlay For Construction 200 sf/roll, white
Overlay For Construction 200 sf/roll, white

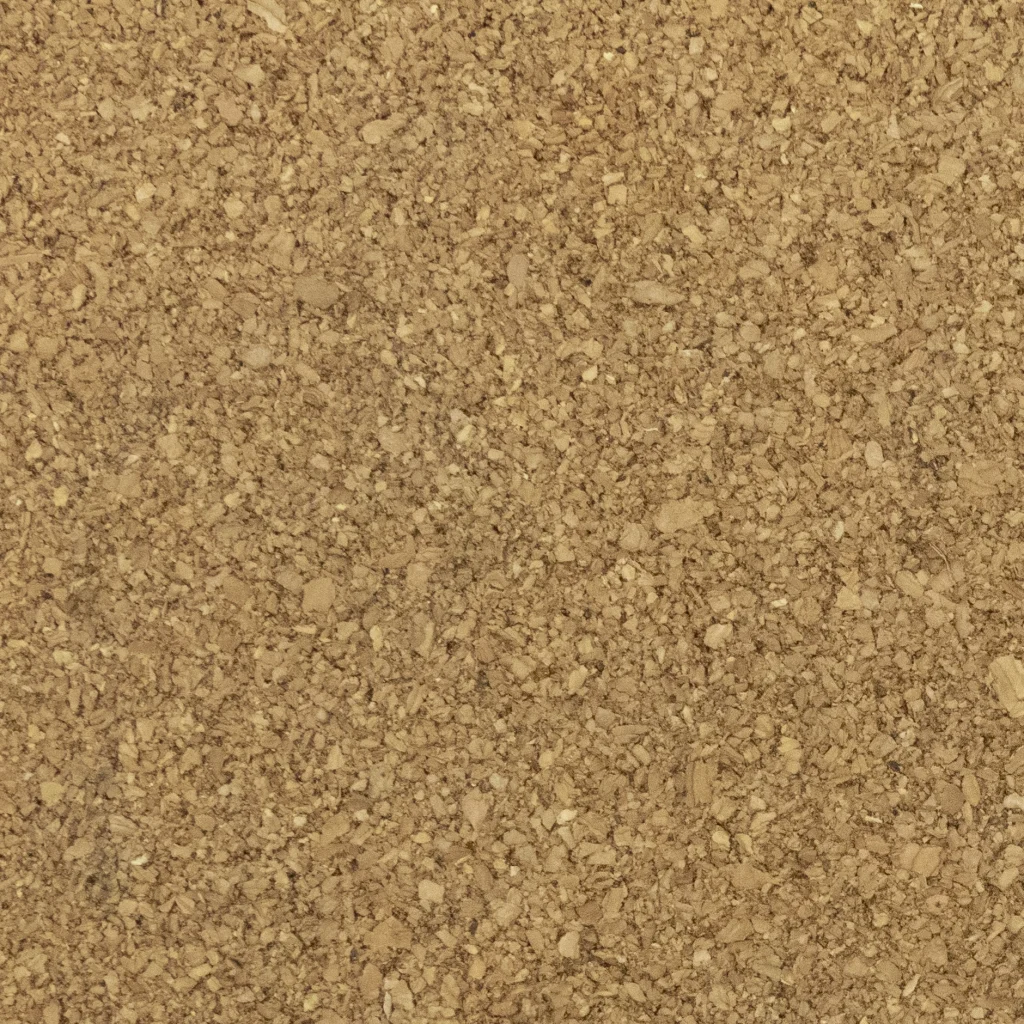

6mm Cork Sheet
2×3 ft, floated or flue down, 72/73
